Sampler & Drum Machine
S2400
A 16-voice sampler, sequencer, and studio centrepiece.
The Machine
The sound of the classics. None of the hassle.
The S2400 is a homage to the sought-after sonic character of the vintage sampling drum machines of the 80s and 90s — with none of the hassle and all of the modern convenience. No floppy disks, no 10-second sample limits, no failing components. Just the sound, the workflow, and the hands-on experience that made those machines legendary, rebuilt from the ground up for today.
The Engine
32 tracks. 16 voices. 8 live loopers.
32 sample playback tracks arranged in four banks of eight, with 16 voices of polyphony playing back simultaneously — mono, stereo, or any combination. Alongside those, 8 dedicated live loop engines run on top of whatever's already playing. And 32 independent MIDI tracks for sequencing your external gear or DSP Card plugins. 99 patterns and 99 songs per project. Record live, step-program in a grid editor, or lay down patterns x0x-style.
Twin Engine Audio
Twin engine audio. Choose your flavour.
Several different circuitry paths to sample through. A classic fixed-filter input stage that colours your source the way the vintage machines did. A clean 16-bit stage for full-bandwidth capture. And a pair of high-quality RIAA phono pre-amps for sampling directly from turntables. Two audio engines — HiFi (48kHz / 16-bit) and Classic (26kHz / 12-bit, with that drop-sample pitch character) — each with its own sampling rate and playback behaviour, selectable per track. Already have content on the card? The dedicated resampling mode routes it back through the analogue path so it sounds like you sampled it from the source all over again — with a shortcut that pitches things the way a 33 to 45 RPM bump would.
Build Quality
16 gauge steel.
6mm aluminium.
Built to work.
There's nothing else in the industry built to this standard. 16-gauge cold-rolled steel, 6mm anodised aluminium side panels, and machined aluminium knobs — denser, stiffer, and better engineered than anything else in a sampler or drum machine. Eight 60mm faders, eight velocity-sensitive RGB pads, and a bright 128 × 64 OLED display. Internal universal power supply — works anywhere on the planet, 100–250V.
Technical Specifications
The Lowdown..
Voice Engine
- 16-voice polyphony, mono or stereo
- 32 sample tracks across 4 banks of 8
- HiFi mode: 48kHz / 16-bit, clean pitch-shifting
- Classic mode: 26kHz / 12-bit, drop-sample pitch
- SD streaming — sample length limited only by the card
- Per-track pitch stretch, time stretch, resample, bounce
Signal Path
- SSI2144 dynamic filters on outputs 1 and 2
- Fixed-cutoff analogue filter stages on channel outs 3–6
- Per-track digital filter (LP / BP / HP)
- Classic anti-aliasing resampling with 33 → 45 pitch shortcut
- Two RIAA phono preamps for turntable sampling
- Analogue summing to the Mix Out bus
Sequencer
- 99 patterns and 99 songs per project
- 32 sample tracks + 32 MIDI tracks (up to 4 MIDI banks)
- Live recording, DAW-style grid editor, or x0x-style step entry
- Per-event editing of level, pitch, envelope, filter, and slice
- Swing, quantise, and time signatures — global or per-track
- Song mode with tempo, mute/solo, and repeat groups

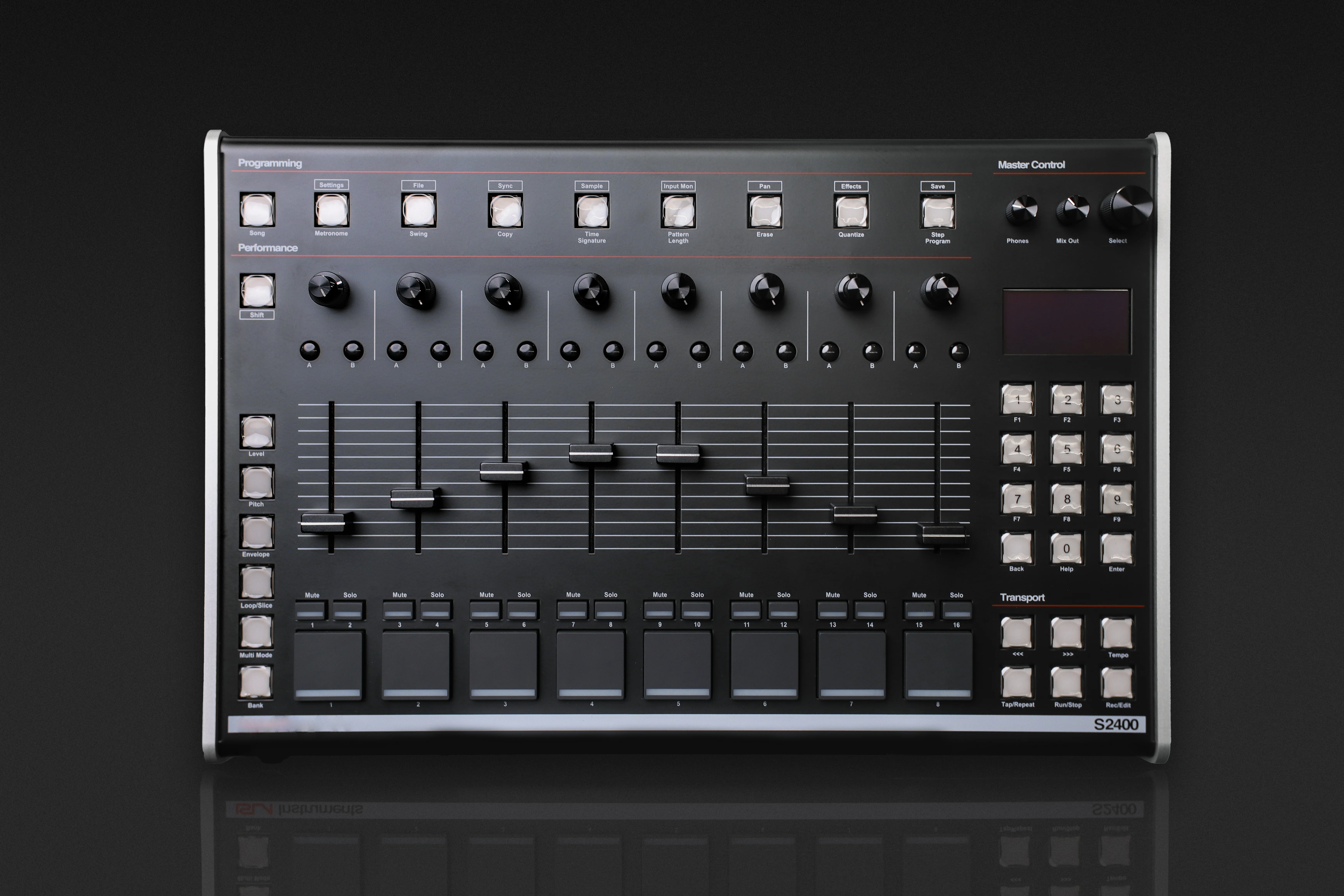

Control Surface
- 8 velocity-sensitive RGB pads (dynamic level)
- 8 × 60mm faders — level, pitch, envelope, loop/slice, multi modes
- 8 dual-concentric filter knobs (cutoff / resonance)
- 16 mute/solo buttons, double as TR-mode step keys
- Numeric keypad, clickable encoder, context-sensitive help key
- 128 × 64 OLED display

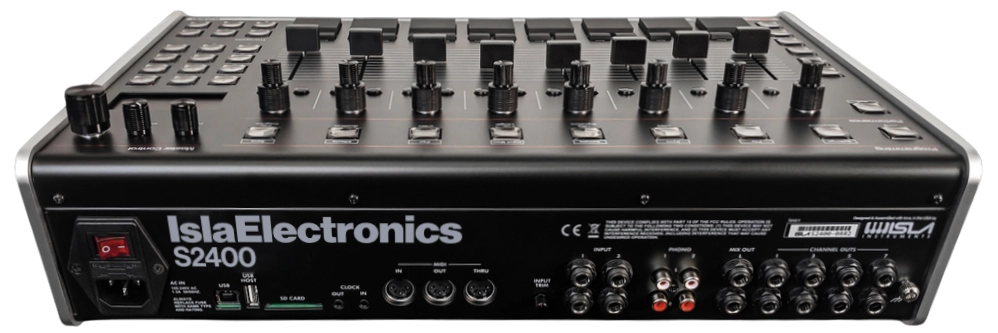

Audio I/O
- 4 × ¼" line sampling inputs (2 through SSI2144)
- 2 × stereo RIAA phono pairs (RCA)
- 8 × ¼" TRS individual channel outputs
- 2 × ¼" Mix Out (summed), front-panel headphone jack
- USB audio interface: 10 channels out, 2 channels in
- MIDI In / Out / Thru (5-pin DIN), USB-B, USB Host
- 3.5mm analogue clock In / Out
- SD card slot (FAT32)
Build
- 16-gauge cold-rolled steel chassis
- 6mm anodised aluminium side panels
- Aluminium-panel knobs, heavy-duty 60mm faders
- Internal universal power supply — works anywhere on the planet (100–250V)
- Dimensions: 460 × 310 × 130 mm
- Weight: 6 kg
DSP Card Expansion
Plug-in hosting,
right in the box.
Reviewers said the S2400 needed built-in effects. So we built the DSP Card — a quad-core 64-bit ARM expansion with 2GB of RAM that fits inside the chassis and intercepts all eight audio streams, routing them through a digital mixer with plug-in inserts, two aux sends, and a master bus. LV2 and VST3 plug-ins run directly on the card. No computer required.
Explore the DSP CardLV2 & VST3 Plugins
Load third-party effects and instruments directly onto the DSP Card. Reverbs, delays, compressors, modulation — a growing library of compatible plugins.
Virtual Instruments & SoundFonts
Play multi-sampled instruments and SoundFont banks via the S2400's MIDI tracks. The DSP Card turns your sampler into a full instrument workstation.
Live FX by Sinevibes
A dedicated performance effect suite with 20 algorithms across 8 slots. DJ-style effects you can trigger from the pads — perfect for live manipulation.
20 Live FX Algorithms
More Reviews
What others
are saying.
“As a standalone beat-making machine, it's near perfect.”
“A worthy successor to the iconic SP.”
“This is simply a great drum machine.”
Web Applications
Companion Apps
A growing collection of web-based tools that make working with the S2400 even more powerful — no software installation required.
S2400 Kit Creator
Drag and drop audio samples — WAV, AIFF, MP3, and more — directly into your browser to build custom kits for the S2400. Preview sounds, arrange them across pads, and export ready-to-load kit files.
Content Library
Content Expansions
A growing library of DSP plugins, sample packs, and expansion content — created by us and our community. From studio-grade reverbs and delays to curated sample packs from world-class producers. All free to download for S2400 owners.
